The machine, then the quotation
The photograph in the header is the catalog bean bagger. A quotation is for one of the machines below, matched to your coffee and the finished pack. The catalog speed is a range. The price follows the machine, the pack and the output you send on WhatsApp.
| If the finished pack is | Start here |
|---|---|
| A retail bag or stick | Bean or powder pillow bags, quad-seal bags, premade pouches, or multi-lane sticks. |
| A drip bag, cup or capsule | Drip-bag machines, rotary or linear cup filling, then cartoning when the retail unit is a box. |
| A can or jar | A filling line: filler, capper and labeler, with the optional stations the catalog names. |
Coffee packaging machines
Each card is one catalog machine. The figures are the ones printed for that machine. Confirm them against your product, pack and site, then send WhatsApp for a quotation on that machine.

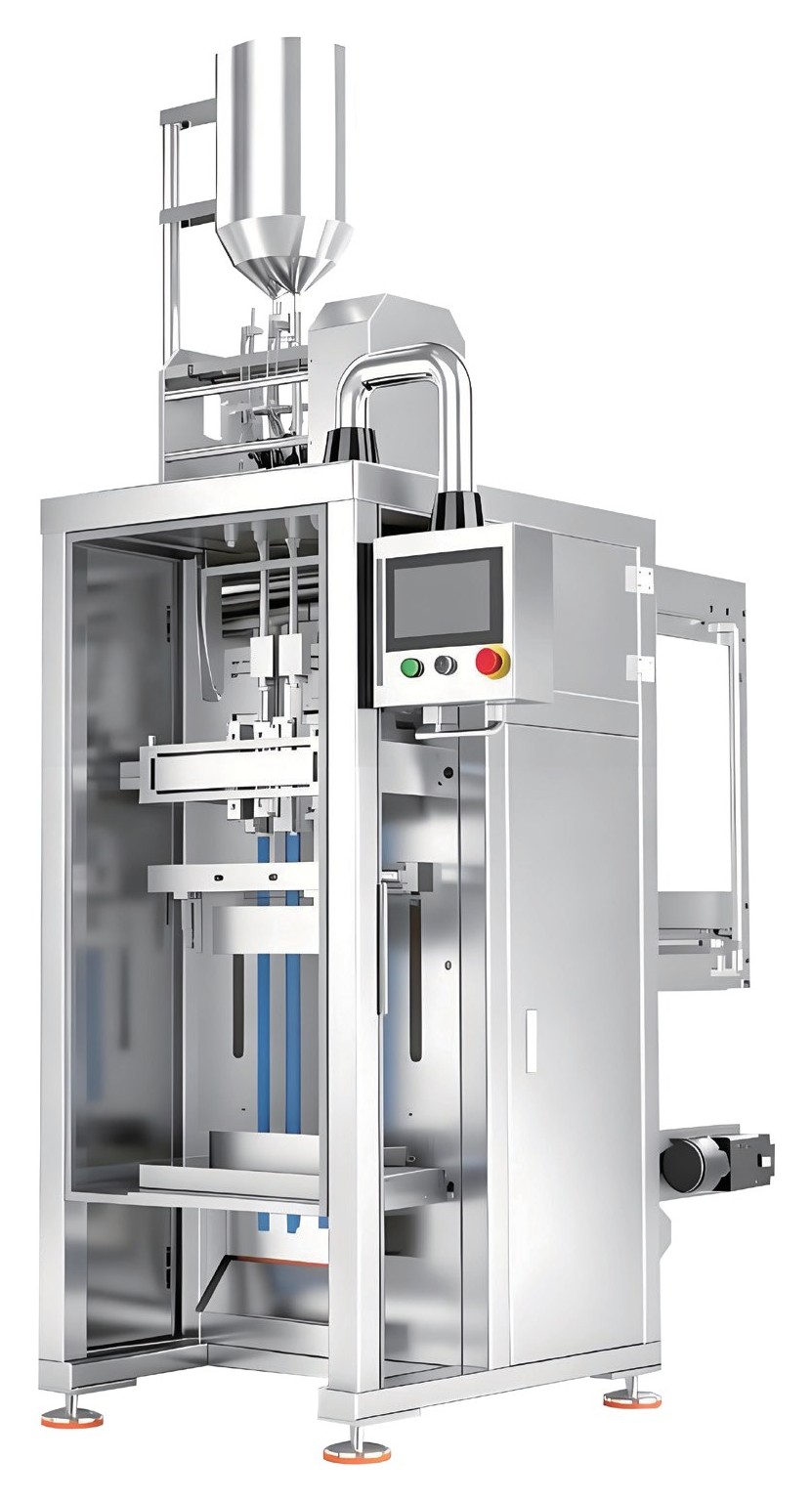

Multi-lane stick packer
Model 400 for back-seal sticks. The catalog speed is 20–50 cycles/min. A second row labeled Packaging Speed is the bag size, not a rate.
- Model 400, 20–50 cycles/min
- Bag length 50–180 mm, width 25–79 mm
- Back seal or stick bag
- 700 × 1375 × 1750 mm, 500 kg

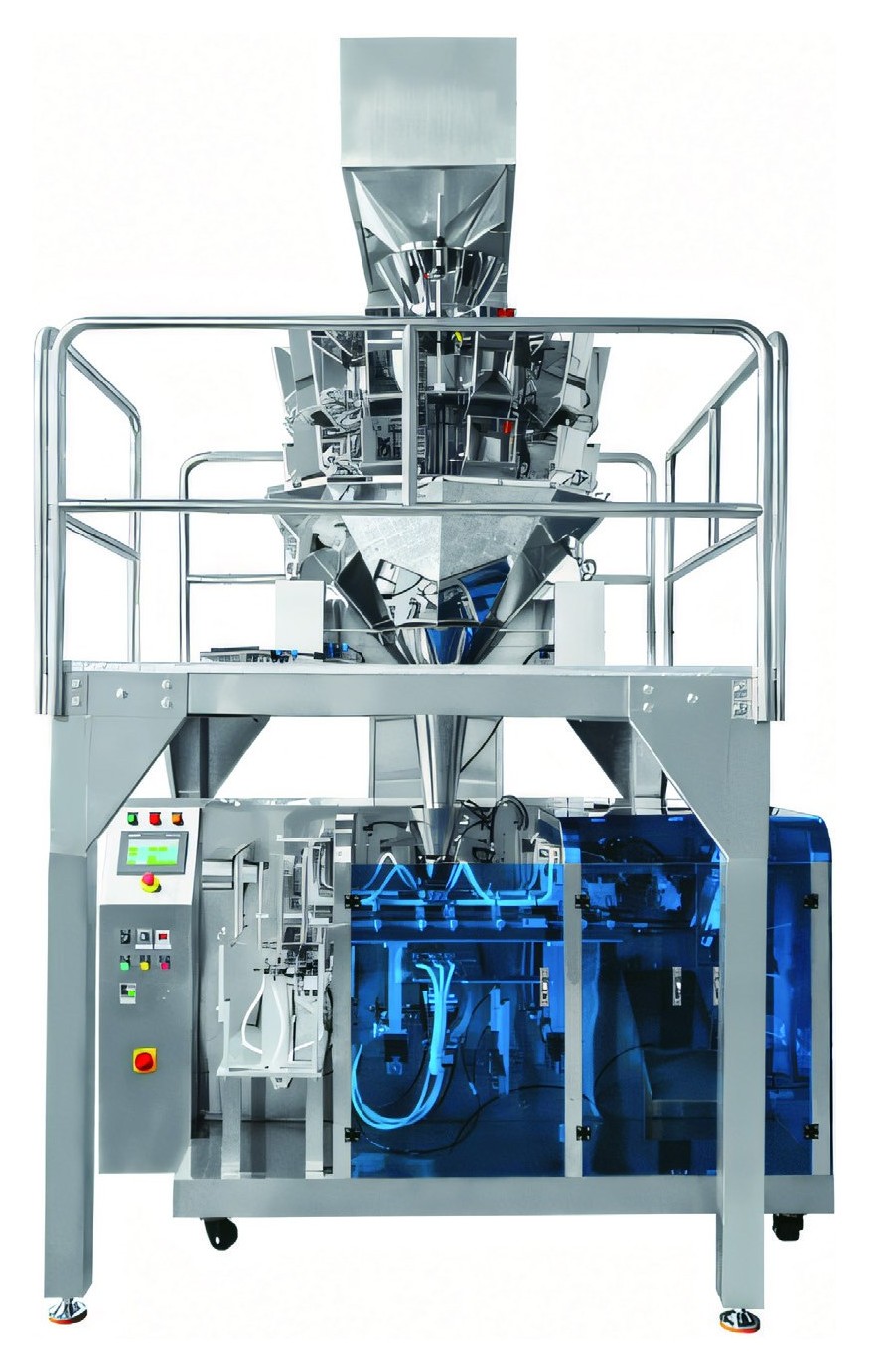

Premade pouch packer
The granule page and the horizontal powder page print the same table, including a supply line written as 220W/380V.
- 20–60 bags/min
- Supply as printed: 220W/380V
- 2.5 kW, 50 Hz
- 1700 × 1050 × 1100 mm, 600 kg

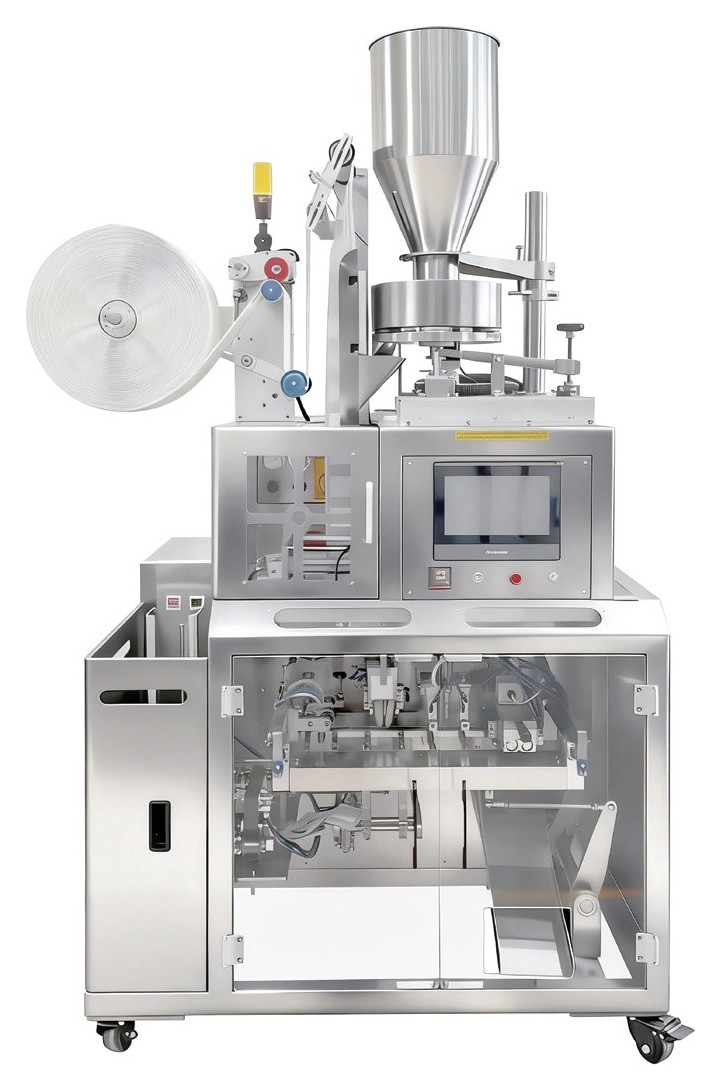

Drip bag machine
Measuring-cup filling. The reciprocating page lists auger filling and the same speed, air, power, weight and size.
- Stable 50 bags/min
- Air 0.6 MPa, 0.35 m³/min
- Single phase 220 V, 50/60 Hz, 2.2 kW
- 1430 × 1180 × 2240 mm, 780 kg

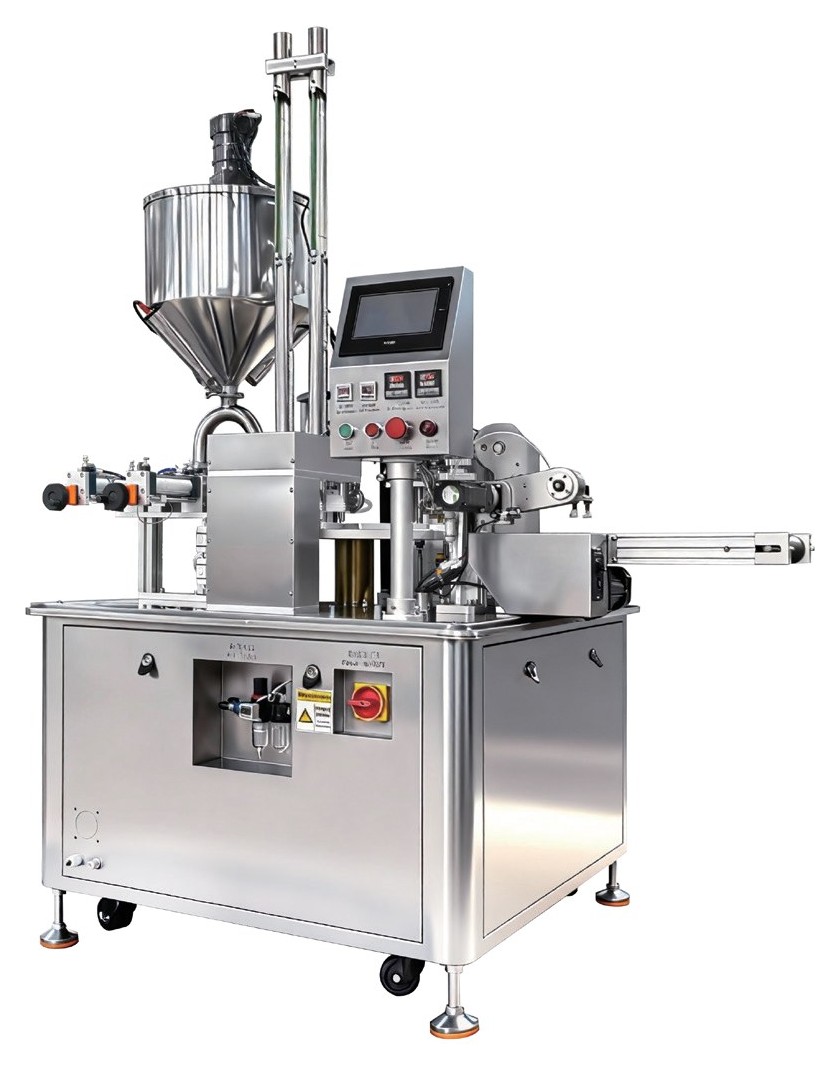

Rotary cup filler
The row labeled Filling Range prints about 1600–1800 pcs/h. The row labeled Total Power Supply prints 5–50 ml.
- About 1600–1800 pcs/h
- Fill volume as printed: 5–50 ml
- 2 kW, accuracy ±5%
- About 1000 × 1000 × 1800 mm, about 380 kg

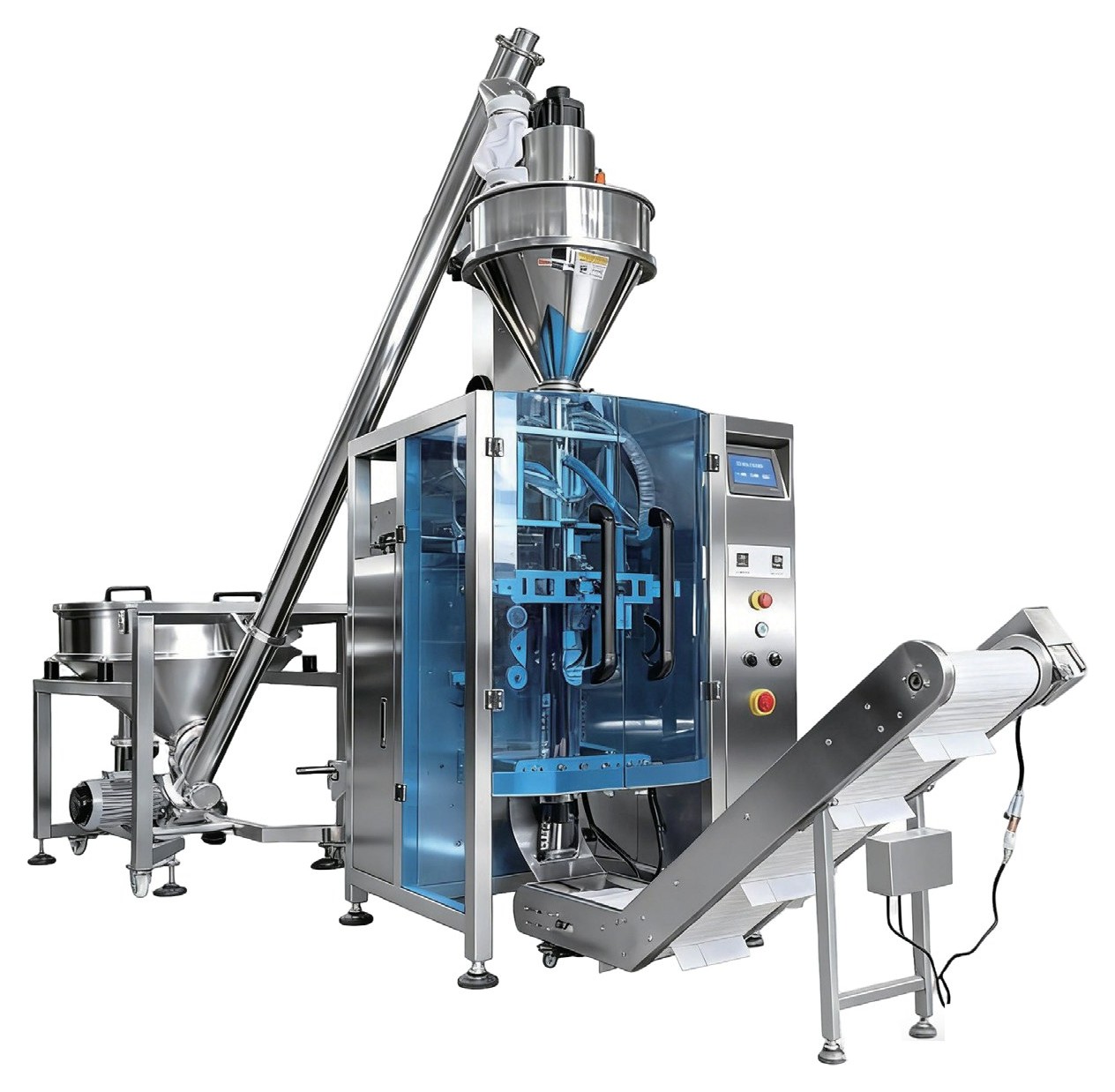

Coffee powder bagger
Vertical bagger for coffee powder. Nitrogen flushing is a separate published configuration.
- Film width max. 420 mm
- 150–1500 ml, 5–60 bags/min
- Bag length 80–300 mm, width 80–200 mm
- 220 V, 50/60 Hz, 2.2 kVA, 950 kg

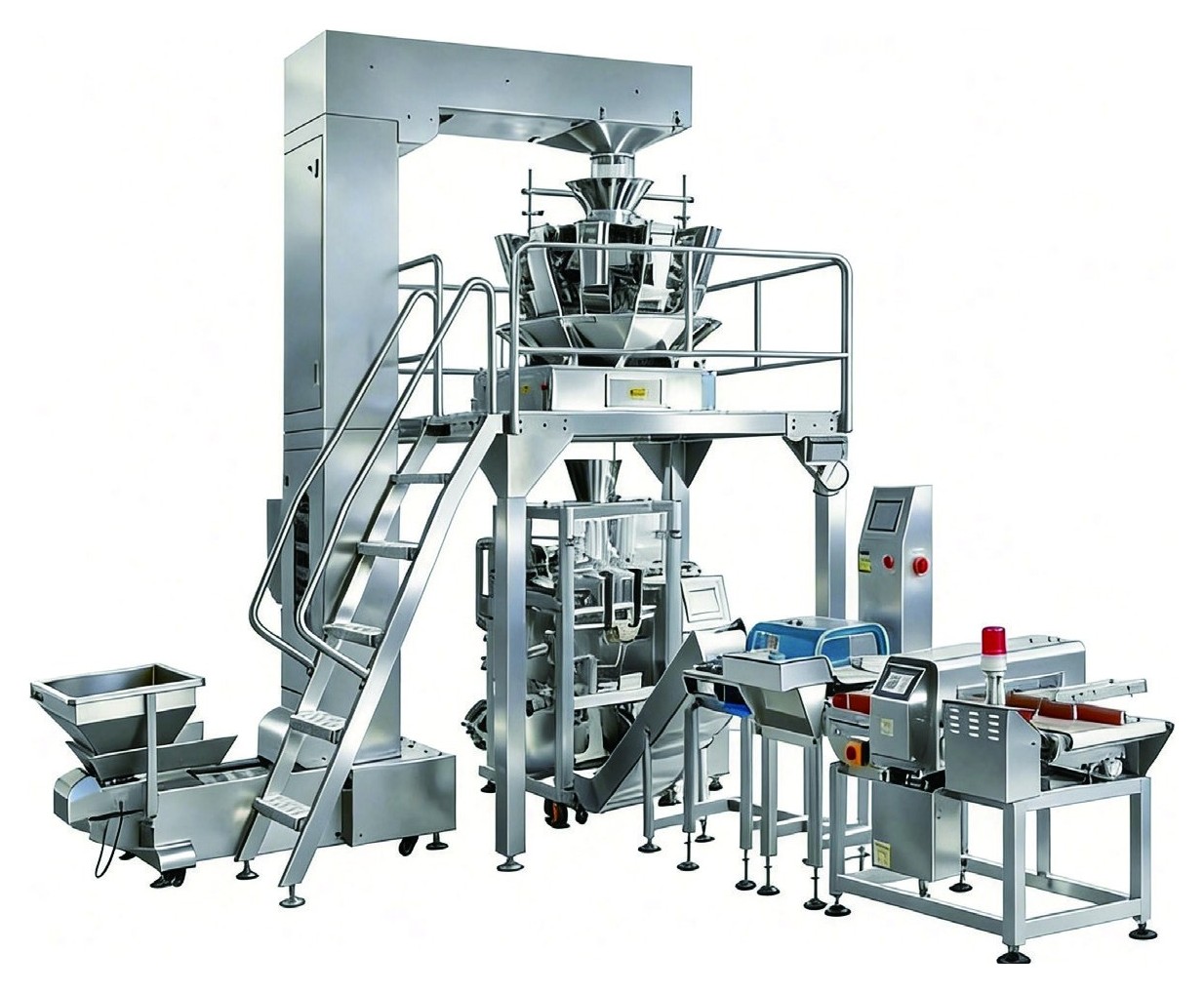

Coffee bean bagger
Weighing and bagging for coffee beans, shown with a valve bag in the catalog.
- Filling range 150–800 ml
- 5–70 bags/min
- 1185 × 935 × 1245 mm, 550 kg
- 220 V, 50/60 Hz, 2 kVA

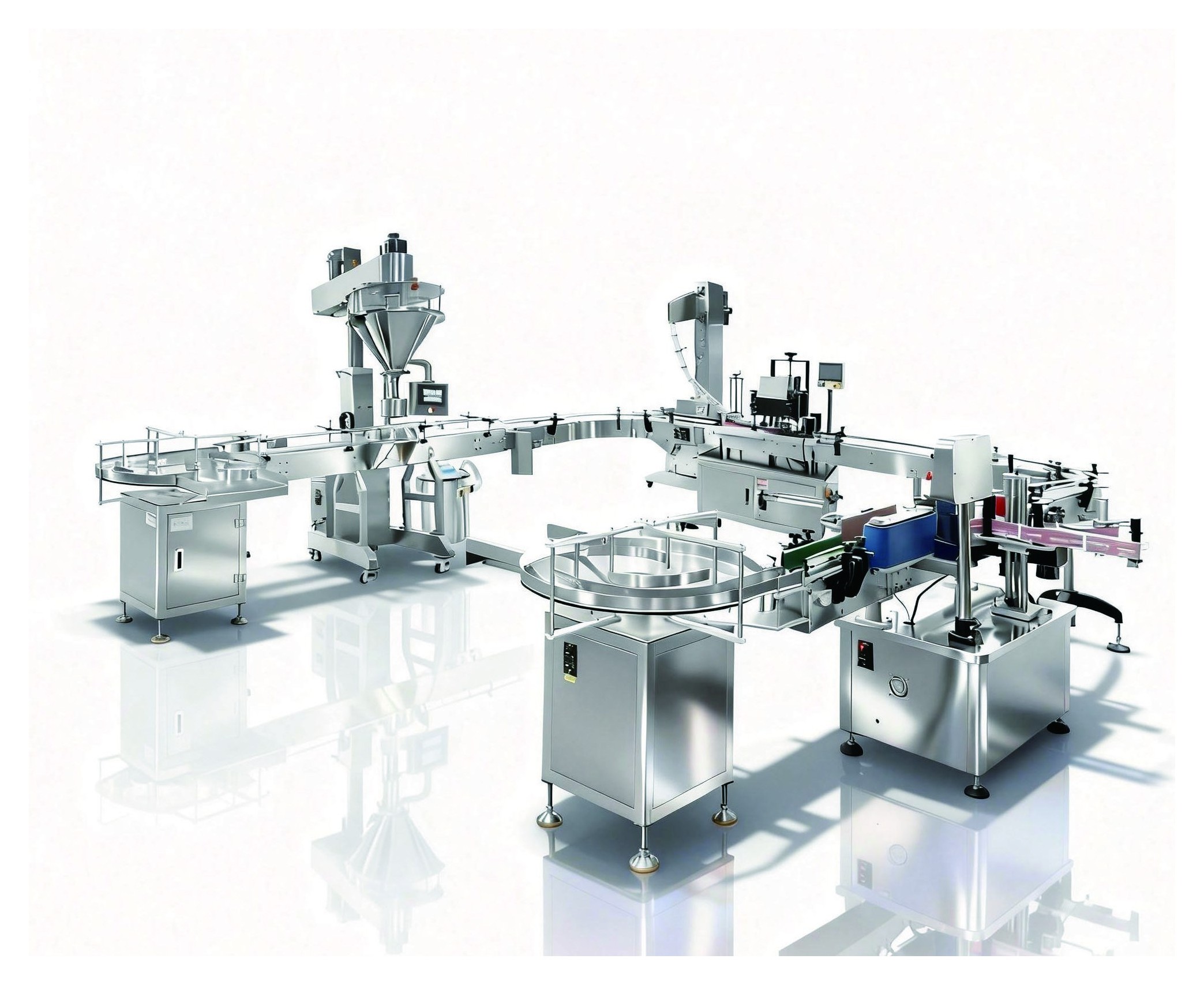

Can and jar filling line
Filler, capper and labeler. The powder line and the bean line share this printed set of three tables.
- Filler 15–30 cans/min, ±1%, 3 kW
- Capper 1500–1800 per hour, 2 kW
- Labeler 1800–2400 bottles per hour, 1.5 kW
- Optional date printer, sterilization and weight checker

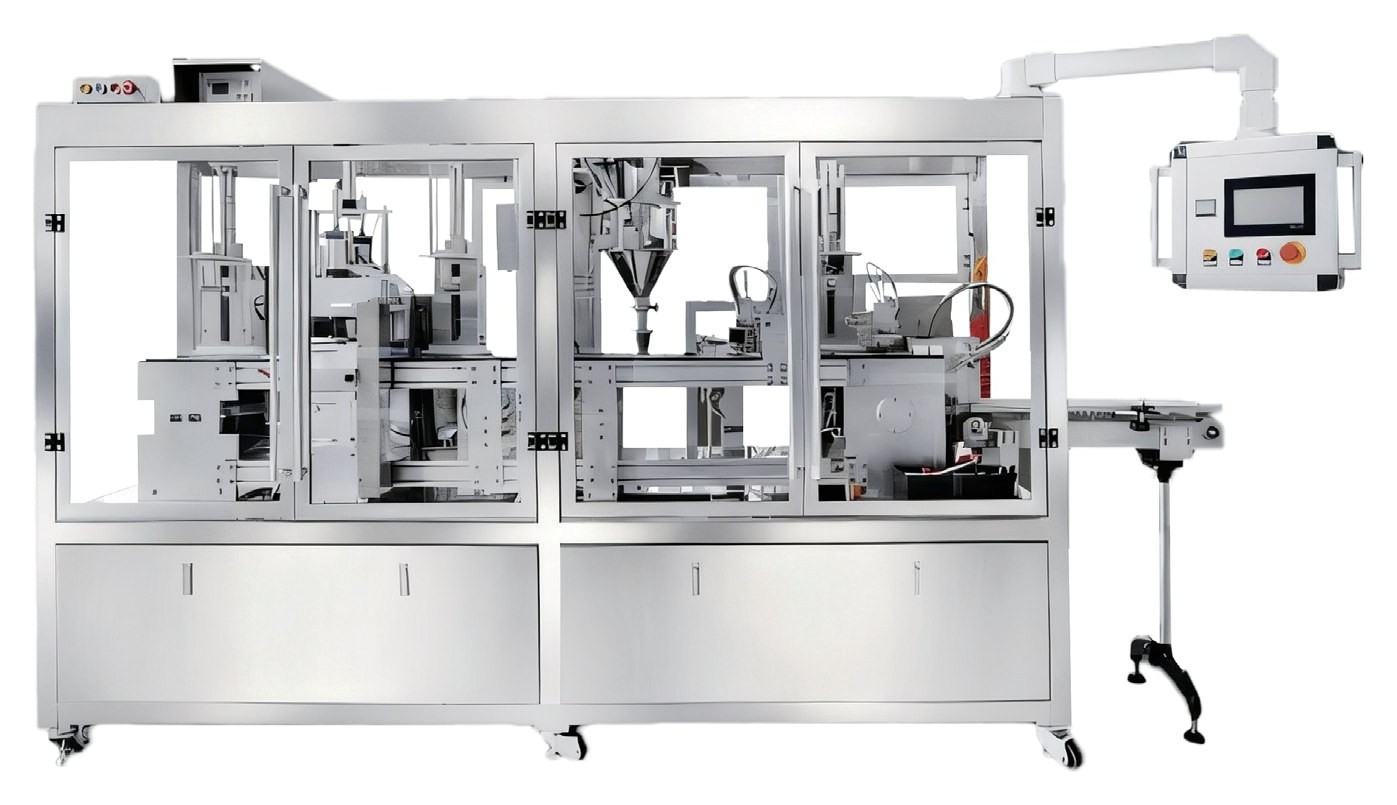

UFO drip packer
The UFO page prints the same cup-per-minute table as the linear cup filler. Those figures stay with this card as printed.
- 30–70 cups/minute, as printed
- Filling accuracy ±1%
- 3-phase 220/380 V, 50/60 Hz, 3 kW
- 3600 × 900 × 2000 mm, 1200 kg

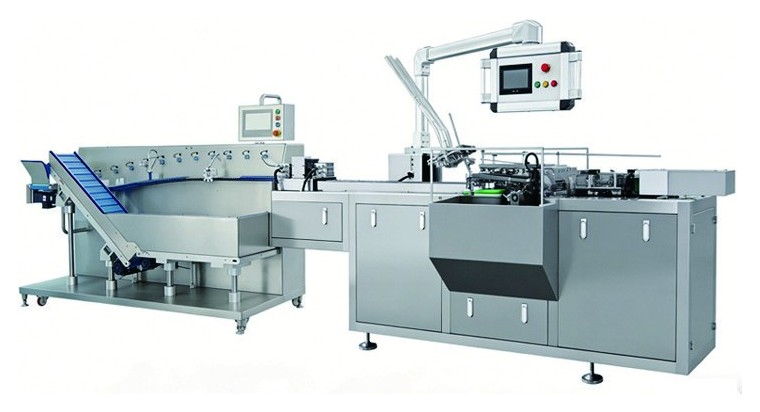

Cartoner DS-250
Capsules and pods are cartoned on a separate machine from the filler.
- Model DS-250
- 6.5 kW, 220 V / 380 V, 50 Hz
- Air 0.6 MPa, 20 m³/h
- 4200 × 1650 × 1850 mm, 2500 kg

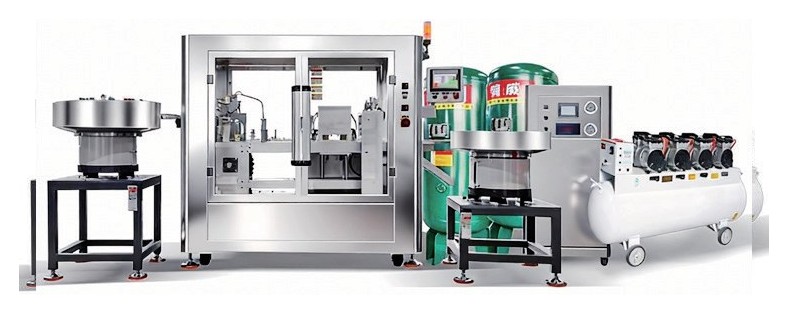

Linear cup filler
Linear coffee filling. Cartoning is a separate machine.
- 30–70 cups/minute
- Filling accuracy ±1%
- 3-phase 220/380 V, 50/60 Hz, 3 kW
- 3600 × 900 × 2000 mm, 1200 kg
Which route to discuss
| Requirement | Bag or stick | Drip, cup or capsule | Can line |
|---|---|---|---|
| Typical product | Beans or powder | Grounds for drip, or a cup or capsule fill | Powder or beans in a rigid container |
| Finished unit | Pillow bag, quad-seal bag, pouch or stick | Drip bag, filled cup, or a carton of capsules | Capped and labeled can or jar |
| Downstream | Optional | Cartoning when the retail unit is a box | Capper and labeler are part of the line |
What to send us
Send what you have and mark what is still undecided. We reply within 24 hours.
| Item | Why we need it | Example format |
|---|---|---|
| Coffee form | Beans, ground, instant powder, drip grounds and liquid concentrate use different dosing. | Whole roasted beans, 250 g and 500 g valve bags |
| Finished pack | Bag, stick, drip bag, cup, capsule or can decides the machine family. | Quad-seal bag with a one-way valve, or a drip bag with an envelope |
| Output | Catalog speeds are ranges. The quoted rate is for your product and pack. | Good packs per minute on the agreed bag size |
| Downstream | Cartoning, capping and labeling are separate stations in the catalog. | Capsules counted into a carton, or cans capped and labeled |
We reply within 24 hours.
