LV-350SY — Horizontal High-Speed Hookah Packaging Machine

How the LV-350SY horizontal hookah packaging machine works

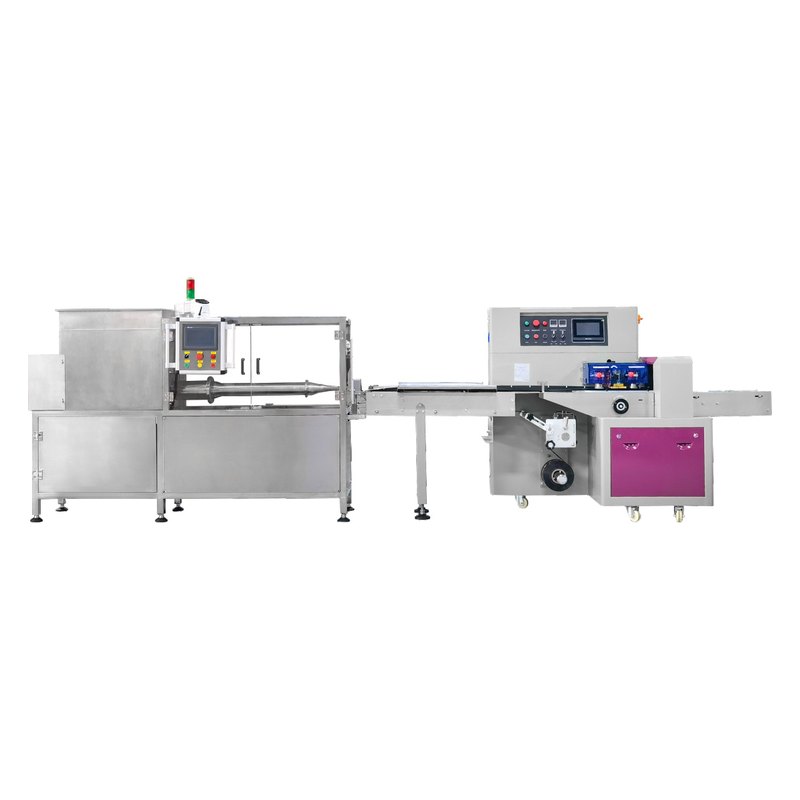

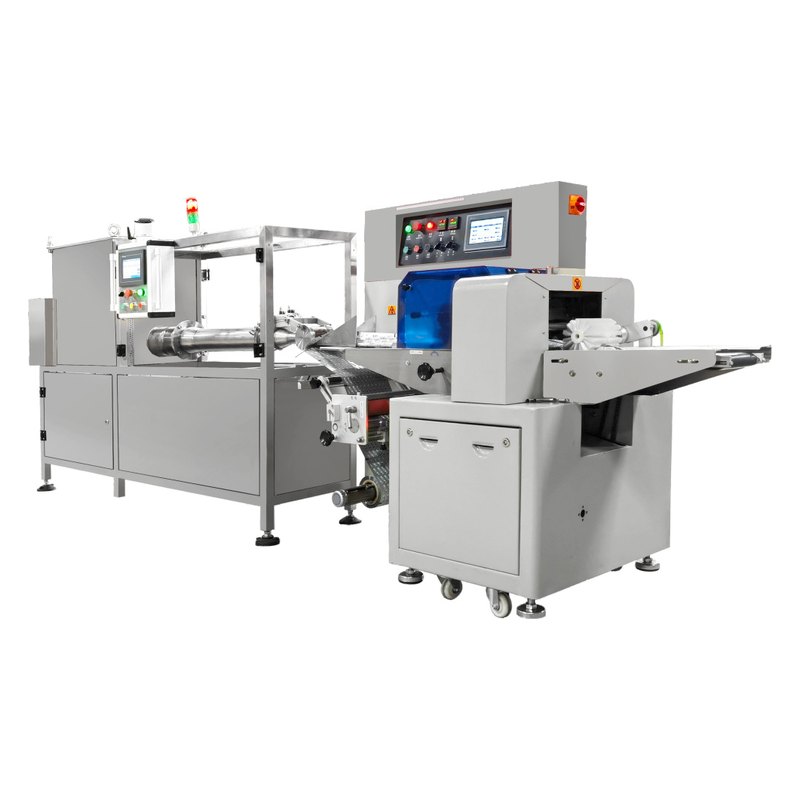

The LV-350SY combines two machines: an extruder and a horizontal pillow-type packer. The material sits in an 80 L hopper, the extruder pushes the shisha tobacco or paste forward, and the packer wraps each portion in film from the reel, seals it and cuts off a pillow pouch. The pack weight of each pouch is measured automatically.

It packs 100–500 g pouches at a listed 50–120 bags per minute, the highest speed among our hookah and shisha packaging machines. The packer is a horizontal flow wrapper: the film is formed into a tube around the product, sealed along its length and cross-sealed at each end, as described on our flow wrapping machines page.

Which shisha pouches it packs

The listed packaging range is 100–500 g, for loose shisha tobacco and for Arab and Turkish shisha tobacco paste. Below 100 g, the vertical LV-320SY covers 20–100 g. If you sell both 50 g and 250 g pouches, no single automatic packer covers both weights: plan this machine for the larger pouch and the vertical packer for the smaller one, or, at lower volume, the semi-automatic LV-SY, which lists 50–1000 g.

The widest film reel is 350 mm. Send the finished pouch size or a sample pouch, and we check it against the film width and make the pouch tooling for each size you run.

From listed speed to pouches per shift

The 50–120 bags per minute is a range. Where your pouch sits in it depends on the pack weight, the film and how your tobacco or paste extrudes. Hypothetical example: at an assumed 60 bags per minute, an 8-hour shift forms 60 × 480 = 28,800 pouches before stops for film changes, cleaning and rejects. That is a calculation, not a rating; the quotation states the rate for your pouch.

From pouch packer to boxed and wrapped pouches

This packer is the first station of our straight-line and corner-type hookah packaging lines. After it, a weighing scale checks the pouches, a cartoner puts them into a box and folds it, and a cellophane wrapping machine wraps each box in transparent film. We supply the stations one by one as well as complete lines, so the quotation can cover the packer alone or the packer with any of those stations.

Horizontal packer or premade pouch packer?

Two of our machines carry the model number LV-350SY. This one forms pouches from film; the premade pouch LV-350SY fills pouches you buy ready-made. Both cover 100–500 g. The horizontal packer lists 50–120 bags per minute, a length of 1417.5 mm and 200 kg; the premade pouch packer lists 10–20 bags per minute, 4799 mm and 450 kg. Choose the horizontal packer for volume, and the premade one when your pack has to stay a ready-made pouch. Name the machine type as well as the model when you ask for a quotation.

What to send for a horizontal hookah packer quotation

These details let us confirm the pouch tooling, the extrusion of your material and the rate for your pouch.

• The material: loose shisha tobacco or paste, how moist it is, and a sample if you can send one
• Every pouch weight you sell, for example 100 g and 250 g
• Pouch size or a sample pouch, and the film you use
• Target pouches per minute or per shift
• Stations after the packer: weighing scale, cartoner, cellophane wrapper, coding
• Site supply at the machine position; the machine lists 220 V, 50/60 Hz, 2.4 kW

Applications and materials

Products and industries listed in the source catalog for this configuration. Suitability for your product is confirmed with a sample or product review.

• Shisha tobacco
• Arab shisha tobacco paste
• Turkish shisha tobacco paste
• Other materials of the same kind, confirmed with a sample

Configuration and scope

Catalog reference: hookah-manual-2026. Confirm the quoted configuration and all project-specific options before placing an order.

Listed included equipment

• Extruder that feeds the material
• Horizontal pillow-type packer with film reel, sealing and cutting

Listed options

• Checkweigher, cartoner and cellophane wrapper after the packer, quoted as a line

Requirements to review — not confirmed as included

• Tooling for each pouch size you run
• Batch or date coding on the pouch

Source-listed features to confirm

The source catalog describes the following features for this configuration. Treat each one as an item to confirm in your quotation, not as guaranteed performance or certification.

• Extruder and horizontal pillow-type packer in one machine: the extruder pushes the material forward and the packer wraps each portion in film.
• Pack weight measured automatically for each pouch.
• Same pouch packer as the first station of the straight and corner hookah packaging lines.

Specifications and conditions

Read every figure with the material, format and conditions stated below. Values come from the source catalog listing and are confirmed for your product in the quotation.

How this fits the Flow Wrapping Machines process

Horizontal flow wrappers carry products on an infeed conveyor into a film tube, fin-seal it underneath and cross-seal each pack. Product dimensions, the infeed method and the film define the scope of a configuration.

This page is one of the catalog configurations in the Flow Wrapping Machines family. Compare it with the other configurations when your product or pack format differs.

This configuration is also listed on a page that compares the options for the same kind of product or machine.

The linked guides explain how this type of machine works and how to choose one.

Related configurations

Configurations for similar products, including the next machine in the line.

Questions buyers ask about this configuration

Short answers to what buyers ask most often when they review a configuration.

How do I get output and dimensions for my product?

Read each listed figure with the material, format and conditions shown beside it. Output, pack-size range and utilities for your product are confirmed in the quotation.

Can I test my product before ordering?

A representative sample test helps resolve material-specific questions before quotation. Please do not ship physical samples until the team has confirmed the quantity needed and where to send them.

Is this the configuration I would receive?

The page identifies a catalog reference configuration. The model, included and optional equipment, formats and performance conditions for your project are confirmed in the quotation and agreement.

What defines the scope of a Flow Wrapping Machines configuration?

Horizontal flow wrappers carry products on an infeed conveyor into a film tube, fin-seal it underneath and cross-seal each pack. Product dimensions, the infeed method and the film define the scope of a configuration.

Supporting information

Product information, listed applications and features, and original images are shared with Dession, another brand within the same company. The catalog source below identifies the reference configuration.

Applications, features and any figures on this page are listed as the source catalog states them, with the conditions shown beside them. They are items to confirm in your quotation, not certifications or guarantees. Project-specific performance and scope are confirmed only in your quotation.

Review your application

Send the following to discuss this configuration. A representative sample test helps resolve material-specific questions before quotation.

• Product name and form (powder, granule, liquid, paste or solid pieces), with a sample or photos
• Target fill weight or volume, or the item count per pack
• Pack type and dimensions, and the packaging material you use
• Target output per minute or per shift
• Site utilities: voltage, phase and frequency, and compressed air
• Any upstream or downstream equipment the machine must connect to
