How the LV-320SY vertical shisha packing machine works

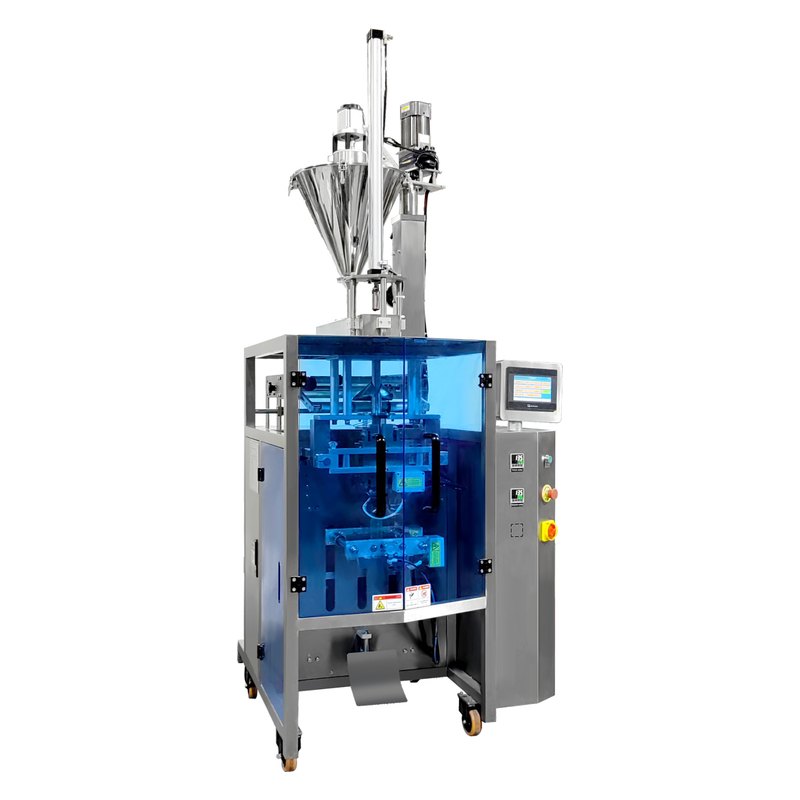

The LV-320SY is a vertical form fill seal machine for small shisha pouches. Film from the reel is formed into a tube, the dosing unit above the forming tube doses 20–100 g of shisha tobacco or paste into it, and the sealing jaws close and cut each pouch. It lists 10–25 bags per minute.

How a vertical packer forms, fills and seals each bag, and what decides its configuration, is set out on our vertical form fill seal machines page.

Pouch weight and pouch size

The listed measuring range is 20–100 g, with bags 80–240 mm long and 50–150 mm wide. The bag width is set by the forming set, so each width you run needs its own; the bag length within the listed range is confirmed for your pouch. For pouches of 100–500 g, use the horizontal LV-350SY or the premade pouch LV-350SY; the hookah application page compares all eight machines by pack weight.

Shisha tobacco or paste in the dosing unit

The LV-320SY is listed for shisha tobacco and for Arab and Turkish shisha tobacco paste. Loose tobacco and paste fill a dosing unit differently, so tell us which one you pack, how moist it is and how it behaves in a hopper. That decides the dosing setup, and whether a sample test with your material should come before the quotation is fixed.

Output from 10–25 bags per minute

Hypothetical example: at an assumed 20 bags per minute, an 8-hour shift forms 20 × 480 = 9,600 pouches before stops for film changes, cleaning and rejects. That is a calculation, not a rating. If you need more small pouches per shift than that, send the target and we show in the quotation how many packers it takes.

Power and floor space

The listed supply is 220 V, 50 Hz, 3.2 kVA. Only 50 Hz is listed, so a 60 Hz site is confirmed in the quotation. The listed machine size is 1185 × 935 × 1245 mm and the weight 450 kg; the space around the film reel and the outfeed is shown on the layout drawing.

What to send for a vertical shisha packer quotation

These details let us confirm the forming set, the dosing for your material and the rate for your pouch.

• The material: loose shisha tobacco or paste, how moist it is, and a sample if you can send one
• Every pouch weight you sell between 20 and 100 g
• Pouch length and width, or a sample pouch, and the film you use
• Target pouches per minute or per shift
• Whether the pouches go on into boxes and cellophane wrapping
• Site voltage, phase and frequency

Applications and materials

Products and industries listed in the source catalog for this configuration. Suitability for your product is confirmed with a sample or product review.

• Shisha tobacco
• Arab shisha tobacco paste
• Turkish shisha tobacco paste
• Other materials of the same kind, confirmed with a sample

Configuration and scope

Catalog reference: hookah-manual-2026. Confirm the quoted configuration and all project-specific options before placing an order.

Listed included equipment

• Vertical bag forming, filling and sealing from roll film
• Dosing unit above the forming tube

Listed options

• Boxing and cellophane wrapping after the packer

Requirements to review — not confirmed as included

• Forming set for each pouch width you run

Source-listed features to confirm

The source catalog describes the following features for this configuration. Treat each one as an item to confirm in your quotation, not as guaranteed performance or certification.

• Forms, fills and seals each pouch on a vertical forming tube from a film reel.
• Covers the small pouch range, below the 100 g minimum of the horizontal LV-350SY.

Specifications and conditions

Read every figure with the material, format and conditions stated below. Values come from the source catalog listing and are confirmed for your product in the quotation.

Listed packing size. The forming set is made for the pouch width you run.

How this fits the Vertical Form Fill Seal Machines process

Vertical form-fill-seal machines form bags from roll film around a forming tube, dose the product from above and seal each bag. The dosing unit, bag style and options such as gas flushing or coding define the scope of a configuration.

This page is one of the catalog configurations in the Vertical Form Fill Seal Machines family. Compare it with the other configurations when your product or pack format differs.

This configuration is also listed on a page that compares the options for the same kind of product or machine.

Related configurations

Configurations for similar products, including the next machine in the line.

Questions buyers ask about this configuration

Short answers to what buyers ask most often when they review a configuration.

How do I get output and dimensions for my product?

Read each listed figure with the material, format and conditions shown beside it. Output, pack-size range and utilities for your product are confirmed in the quotation.

Can I test my product before ordering?

A representative sample test helps resolve material-specific questions before quotation. Please do not ship physical samples until the team has confirmed the quantity needed and where to send them.

Is this the configuration I would receive?

The page identifies a catalog reference configuration. The model, included and optional equipment, formats and performance conditions for your project are confirmed in the quotation and agreement.

What defines the scope of a Vertical Form Fill Seal Machines configuration?

Vertical form-fill-seal machines form bags from roll film around a forming tube, dose the product from above and seal each bag. The dosing unit, bag style and options such as gas flushing or coding define the scope of a configuration.

Supporting information

Product information, listed applications and features, and original images are shared with Dession, another brand within the same company. The catalog source below identifies the reference configuration.

Applications, features and any figures on this page are listed as the source catalog states them, with the conditions shown beside them. They are items to confirm in your quotation, not certifications or guarantees. Project-specific performance and scope are confirmed only in your quotation.

Review your application

Send the following to discuss this configuration. A representative sample test helps resolve material-specific questions before quotation.

• Product name and form (powder, granule, liquid, paste or solid pieces), with a sample or photos
• Target fill weight or volume, or the item count per pack
• Pack type and dimensions, and the packaging material you use
• Target output per minute or per shift
• Site utilities: voltage, phase and frequency, and compressed air
• Any upstream or downstream equipment the machine must connect to
