| Parameter | Specification |
|---|---|
| Lanes | 2–4 / 3–10 / 4–16 lanes |
| Fill range | 1–30 g |
| Bag length | 50–150 mm |
| Bag width | 20–65 / 20–85 / 20–105 mm |
| Maximum film width | 400 / 680 / 980 mm |
| Packing speed | 20–40 cuts/min |
| Voltage | 220 V, 50/60 Hz |
| Power | 4.5 / 6 / 7.5 kW |
| Machine weight | 500 / 650 / 800 kg |
| Machine dimensions | 700 × 1375 × 2680 / 1350 × 1600 × 2850 / 1650 × 1800 × 2950 mm |
On this page
Applications and materials
This configuration serves the following products and applications. Our engineers review product behavior and pack requirements with representative samples.
- Collagen, protein, probiotics, enzyme, fibre and vitamin blends
- Instant coffee mix, milk powder, matcha, meal replacements, stevia and fine sugar
- Herbal formulations, cold and flu granules, dispersible powders and medical sachets
Configuration and scope
We develop the equipment configuration, tooling and integration around your product, pack format and production requirements.
Included equipment
- Multi-lane stick forming and sealing
- Auger powder dosing
Configuration items for engineering review
- Lane count and dosing screw tooling
- Cut pattern, coder and feeding arrangement
Machine features
Review these features with our engineering team to select the configuration for your product and packaging requirements.
- Product-contact parts in SUS304/SUS316L stainless steel, with a dust-proof, easy-to-clean build for food and medical use.
Specifications and conditions
The specifications below describe this configuration with its operating conditions. We review the product, pack format, tooling and utilities for your installation.
| Parameter | Specification | Conditions |
|---|---|---|
| Lanes | 2–4 / 3–10 / 4–16 lanes | Listed for LV-400BF / LV-680BF / LV-980BF respectively; the number of lanes is selected per project. |
| Fill range | 1–30 g | Customizable dosing screw tooling; validate the actual powder density and target dose. |
| Bag length | 50–150 mm | Same range for all three models; confirm the forming and cutting configuration. |
| Bag width | 20–65 / 20–85 / 20–105 mm | Listed for LV-400BF / LV-680BF / LV-980BF respectively; confirm for your product, pack format and utilities in the quotation. Width depends on the selected forming tooling. |
| Maximum film width | 400 / 680 / 980 mm | See table note |
| Packing speed | 20–40 cuts/min | Machine cycles per minute; each cycle cuts one pack in every lane. |
| Voltage | 220 V, 50/60 Hz | Same for all three models; confirm utilities for your site in the quotation. |
| Power | 4.5 / 6 / 7.5 kW | See table note |
| Machine weight | 500 / 650 / 800 kg | Listed for LV-400BF / LV-680BF / LV-980BF respectively; confirm for your product, pack format and utilities in the quotation. Confirm final shipping data. |
| Machine dimensions | 700 × 1375 × 2680 / 1350 × 1600 × 2850 / 1650 × 1800 × 2950 mm | See table note |
Listed for LV-400BF / LV-680BF / LV-980BF respectively; confirm for your product, pack format and utilities in the quotation.
How this fits the Stick Pack Machines process

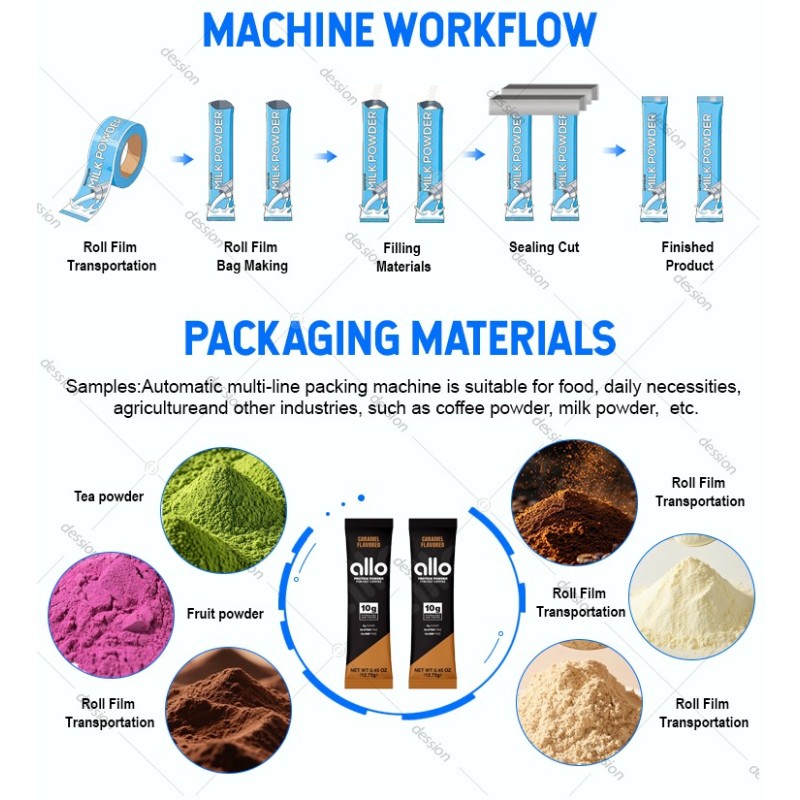

Stick-pack machines slit one film web into several lanes, form narrow back-sealed sticks and dose every lane in parallel. Lane count, the dosing method and the cut style define the scope of a configuration.
This machine is part of our Stick Pack Machines portfolio. Explore the configurations for other products and pack formats, or discuss a tailored arrangement with our engineering team.
This configuration is also listed on pages that compare the options for the same kind of product or machine.
The linked guides explain how this type of machine works and how to choose one.
Questions buyers ask about this configuration
Short answers to what buyers ask most often when they review a configuration.
How do I get output and dimensions for my product?
Use each specification with its material, format and operating conditions. Our engineers define the output, pack-size range and utilities for your production requirements.
Can I test my product before ordering?
A representative sample test helps resolve material-specific questions before quotation. Please do not ship physical samples until the team has confirmed the quantity needed and where to send them.
Is this the configuration I would receive?
We configure the machine around your product, pack formats and production requirements. Our engineering review defines the model, equipment, options and operating conditions for your project.
What defines the scope of a Stick Pack Machines configuration?
Stick-pack machines slit one film web into several lanes, form narrow back-sealed sticks and dose every lane in parallel. Lane count, the dosing method and the cut style define the scope of a configuration.
Engineering support
LINEVO engineers develop machine configurations and packaging-line interfaces around your production task. We bring application review, equipment selection and technical support into one project.
Product and packaging-material trials focus on the functions that matter for your application. Our team helps with configuration, operation, parameter adjustment and maintenance planning.
Review your application
Send the following to discuss this configuration. A representative sample test helps resolve material-specific questions before quotation.
- Product name and form (powder, granule, liquid, paste or solid pieces), with a sample or photos
- Target fill weight or volume, or the item count per pack
- Pack type and dimensions, and the packaging material you use
- Target output per minute or per shift
- Site utilities: voltage, phase and frequency, and compressed air
- Any upstream or downstream equipment the machine must connect to
What to send us
Send what you have and mark what is still undecided. Discuss your application with LINEVO.
| Item | Why we need it | Example format |
|---|---|---|
| Product and its behavior | Powder, granule, liquid, paste or solid pieces decide the dosing method and the parts that touch the product. | Free-flowing granules, with a photo of the product |
| Finished pack and fill | The pack style, its size and the fill per pack set the format and the dosing range. | Pillow bag, 100 × 150 mm, 50 g per bag |
| Target output | Output per minute or per shift decides the number of lanes and the model size. | 60 good packs per minute, one shift per day |
| Packaging material | Film or container type affects sealing, forming and the settings we confirm. | Laminated roll film, 250 mm wide, or the film datasheet |
| Site and destination | Power supply, compressed air and destination country decide the electrical and utility scope. | 380 V, 3-phase, 50 Hz, delivery to Germany |
