| Parameter | Specification |
|---|---|
| Bag Width | 20–60 mm per lane (Subject to film specification) |
| Bag Length | 50–180 mm |
| Measuring Range | 1–30 g (Depending on granule density) |
| Film Width | Max. 420 mm |
| Packing Material | OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL, Paper/PE, Laminated films |
On this page
Applications and materials
This configuration serves the following products and applications. Our engineers review product behavior and pack requirements with representative samples.
- This high-efficiency multi-lane sachet packaging machine is professionally designed for volumetric dosing and small bag packaging of various granular materials.
- Solid Beverages & Drinks: Instant coffee powder/granules, milk tea granules, instant fruit drink powder, ginger tea, herbal tea.
- Healthcare Products: Health supplement granules, probiotics, enzyme powder, dietary fiber granules.
- Food & Condiments: White sugar, brown sugar, salt, pepper, seasoning granules, broken tea leaves.
- Chemicals & Pharma: Cold granules, medicinal granules, desiccant particles, chemical washing granules.
Configuration and scope
We develop the equipment configuration, tooling and integration around your product, pack format and production requirements.
Configuration items for engineering review
- Advanced PLC & Servo Control System
- High-Accuracy Volumetric Dosing
- Volumetric Dosing
- Material Filling
- Vertical & Horizontal Sealing
Machine features
Review these features with our engineering team to select the configuration for your product and packaging requirements.
- Advanced PLC & Servo Control System: Equipped with an intelligent PLC controller and touch screen (bilingual English/Chinese). Servo-driven film pulling ensures precise bag length control and smooth film feeding without tearing.
- Intelligent Self-Diagnostic & Safety: Built-in automatic alarm protection stops the machine in case of error (e.g., no film, product jam), reducing material waste and protecting the service life of cutting knives.
- Independent PID Temperature Control: Temperature settings control the sealing process for the selected film. Flat-cut, zigzag-cut and batch-coding options are available for configuration review.
Working process
The sequence below outlines the packaging process. We coordinate the stations and their order with the selected equipment and line layout.
- Step 1 — The fully automatic multi-lane packaging process integrates the following steps in one continuous fluid operation.
- Step 2 — Volumetric Dosing: The granule dosing device meters solid beverage granules into each lane.
- Step 3 — Material Filling: The metered granules pass into the formed film bags.

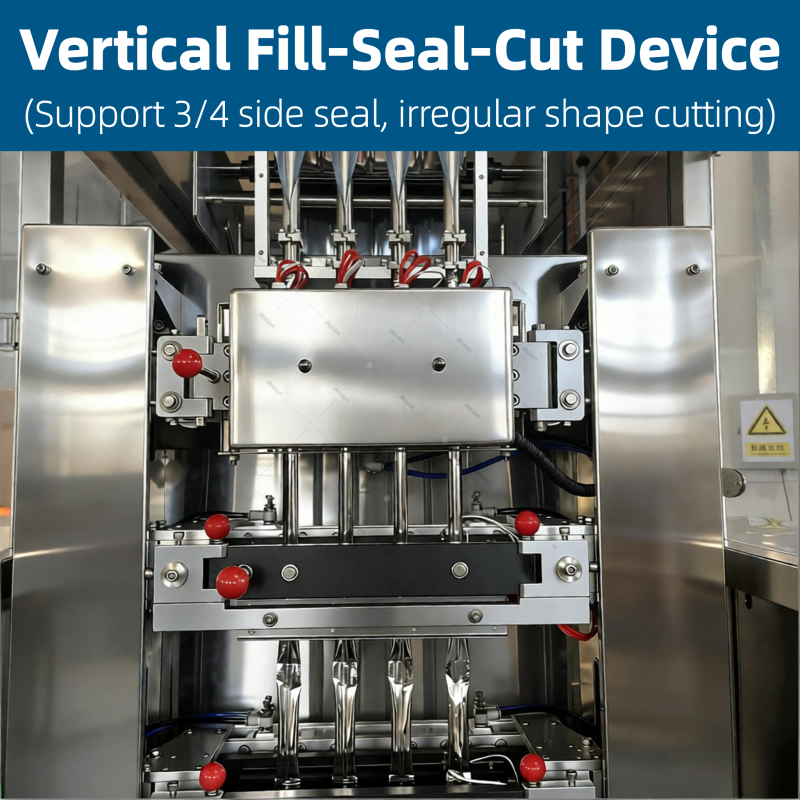

- Step 4 — Vertical & Horizontal Sealing: The back-seal and horizontal sealing devices join the film to close the pack.
- Step 5 — Batch Coding & Cutting: The built-in ribbon printer/laser marker prints the expiry date/batch number, and the cutting device cuts the individual pouches.
- Step 6 — Finished Product Output: The finished small bags/sachets are discharged via the conveyor belt.
Specifications and conditions
The specifications below describe this configuration with its operating conditions. We review the product, pack format, tooling and utilities for your installation.
| Parameter | Specification | Conditions |
|---|---|---|
| Bag Width | 20–60 mm per lane (Subject to film specification) | See table note |
| Bag Length | 50–180 mm | See table note |
| Measuring Range | 1–30 g (Depending on granule density) | The dose for your product is set and checked in the sample trial. |
| Film Width | Max. 420 mm | Widest film reel the machine takes. |
| Packing Material | OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL, Paper/PE, Laminated films | Your product and packaging material are run in the sample trial. |
The forming set or change parts are made for each pack size you run.
How this fits the Sachet Packing Machines process
Sachet machines form small three- or four-side-sealed packs from roll film and dose each pack, often across several lanes. Sachet size, seal pattern, dosing method and lane count define the scope of a configuration.
This machine is part of our Sachet Packing Machines portfolio. Explore the configurations for other products and pack formats, or discuss a tailored arrangement with our engineering team.
The linked guides explain how this type of machine works and how to choose one.
Questions buyers ask about this configuration
Short answers to what buyers ask most often when they review a configuration.
How do I get output and dimensions for my product?
Use each specification with its material, format and operating conditions. Our engineers define the output, pack-size range and utilities for your production requirements.
Can I test my product before ordering?
A representative sample test helps resolve material-specific questions before quotation. Please do not ship physical samples until the team has confirmed the quantity needed and where to send them.
Is this the configuration I would receive?
We configure the machine around your product, pack formats and production requirements. Our engineering review defines the model, equipment, options and operating conditions for your project.
What defines the scope of a Sachet Packing Machines configuration?
Sachet machines form small three- or four-side-sealed packs from roll film and dose each pack, often across several lanes. Sachet size, seal pattern, dosing method and lane count define the scope of a configuration.
Engineering support
LINEVO engineers develop machine configurations and packaging-line interfaces around your production task. We bring application review, equipment selection and technical support into one project.
Product and packaging-material trials focus on the functions that matter for your application. Our team helps with configuration, operation, parameter adjustment and maintenance planning.
Review your application
Send the following to discuss this configuration. A representative sample test helps resolve material-specific questions before quotation.
- Product name and form (powder, granule, liquid, paste or solid pieces), with a sample or photos
- Target fill weight or volume, or the item count per pack
- Pack type and dimensions, and the packaging material you use
- Target output per minute or per shift
- Site utilities: voltage, phase and frequency, and compressed air
- Any upstream or downstream equipment the machine must connect to
What to send us
Send what you have and mark what is still undecided. Discuss your application with LINEVO.
| Item | Why we need it | Example format |
|---|---|---|
| Product and its behavior | Powder, granule, liquid, paste or solid pieces decide the dosing method and the parts that touch the product. | Free-flowing granules, with a photo of the product |
| Finished pack and fill | The pack style, its size and the fill per pack set the format and the dosing range. | Pillow bag, 100 × 150 mm, 50 g per bag |
| Target output | Output per minute or per shift decides the number of lanes and the model size. | 60 good packs per minute, one shift per day |
| Packaging material | Film or container type affects sealing, forming and the settings we confirm. | Laminated roll film, 250 mm wide, or the film datasheet |
| Site and destination | Power supply, compressed air and destination country decide the electrical and utility scope. | 380 V, 3-phase, 50 Hz, delivery to Germany |
