| Parameter | Specification |
|---|---|
| Packing Speed | 25–35 bags/min |
| Machine Weight | 1000 kg |
| Voltage | 220 V |
| Power | 4.5 kW |
| Machine Size | 1940 × 1600 × 2650 mm |
On this page
Applications and materials
This configuration serves the following products and applications. Our engineers review product behavior and pack requirements with representative samples.

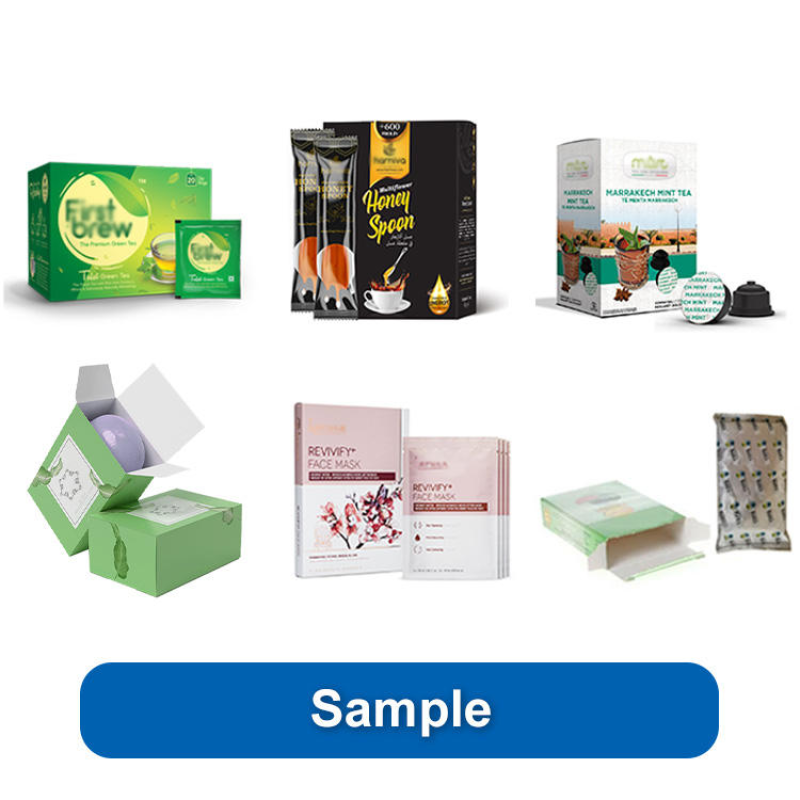

- Tea Production: Black tea, green tea, herbal blends, fruit tea bags, and premium loose-leaf pyramid mesh bags.
Configuration and scope
We develop the equipment configuration, tooling and integration around your product, pack format and production requirements.
Configuration items for engineering review
- Application, format tooling and equipment configuration for engineering review
Machine features
Review these features with our engineering team to select the configuration for your product and packaging requirements.
- Optimized Carton Pickup System: High-efficiency vacuum suction matrix securely extracts and unfolds carton blanks, ensuring smooth opening even with textured or eco-friendly paperboards.
- User-Friendly Multi-Language HMI: PLC central control with an intuitive color touch panel for quick multi-specification parameter adjustments and clear diagnostics.
Specifications and conditions
The specifications below describe this configuration with its operating conditions. We review the product, pack format, tooling and utilities for your installation.
| Parameter | Specification | Conditions |
|---|---|---|
| Packing Speed | 25–35 bags/min | Depends on the product, fill weight and pack size. |
| Machine Weight | 1000 kg | Net machine weight. Shipping weight and crate size are stated with the order. |
| Voltage | 220 V | See table note |
| Power | 4.5 kW | See table note |
| Machine Size | 1940 × 1600 × 2650 mm | Length × width × height. The layout drawing in the quotation shows the floor space. |
Give the voltage, phase and frequency at your site; the quotation states the electrical configuration.
How this fits the Automatic Cartoning Machines process
Cartoning machines open carton blanks, load products and leaflets, and close each carton with tuck-in flaps or glue. Carton dimensions, the loading method and upstream integration define the scope of a configuration.
This machine is part of our Automatic Cartoning Machines portfolio. Explore the configurations for other products and pack formats, or discuss a tailored arrangement with our engineering team.
This configuration is also listed on a page that compares the options for the same kind of product or machine.
The linked guides explain how this type of machine works and how to choose one.
Questions buyers ask about this configuration
Short answers to what buyers ask most often when they review a configuration.
How do I get output and dimensions for my product?
Use each specification with its material, format and operating conditions. Our engineers define the output, pack-size range and utilities for your production requirements.
Can I test my product before ordering?
A representative sample test helps resolve material-specific questions before quotation. Please do not ship physical samples until the team has confirmed the quantity needed and where to send them.
Is this the configuration I would receive?
We configure the machine around your product, pack formats and production requirements. Our engineering review defines the model, equipment, options and operating conditions for your project.
What defines the scope of a Automatic Cartoning Machines configuration?
Cartoning machines open carton blanks, load products and leaflets, and close each carton with tuck-in flaps or glue. Carton dimensions, the loading method and upstream integration define the scope of a configuration.
Engineering support
LINEVO engineers develop machine configurations and packaging-line interfaces around your production task. We bring application review, equipment selection and technical support into one project.
Product and packaging-material trials focus on the functions that matter for your application. Our team helps with configuration, operation, parameter adjustment and maintenance planning.
Review your application
Send the following to discuss this configuration. A representative sample test helps resolve material-specific questions before quotation.
- Product name and form (powder, granule, liquid, paste or solid pieces), with a sample or photos
- Target fill weight or volume, or the item count per pack
- Pack type and dimensions, and the packaging material you use
- Target output per minute or per shift
- Site utilities: voltage, phase and frequency, and compressed air
- Any upstream or downstream equipment the machine must connect to
What to send us
Send what you have and mark what is still undecided. Discuss your application with LINEVO.
| Item | Why we need it | Example format |
|---|---|---|
| Product and its behavior | Powder, granule, liquid, paste or solid pieces decide the dosing method and the parts that touch the product. | Free-flowing granules, with a photo of the product |
| Finished pack and fill | The pack style, its size and the fill per pack set the format and the dosing range. | Pillow bag, 100 × 150 mm, 50 g per bag |
| Target output | Output per minute or per shift decides the number of lanes and the model size. | 60 good packs per minute, one shift per day |
| Packaging material | Film or container type affects sealing, forming and the settings we confirm. | Laminated roll film, 250 mm wide, or the film datasheet |
| Site and destination | Power supply, compressed air and destination country decide the electrical and utility scope. | 380 V, 3-phase, 50 Hz, delivery to Germany |
