Automatic Perfume Box Overwrapping Machine

Overwrapping machine for perfume boxes

A perfume box overwrapping machine wraps each fragrance carton in a tight envelope of clear film with folded, heat-sealed ends, the finish seen on perfume boxes on a retail shelf. Film comes off a reel, is cut to length and folded around the box, and the side and end folds are heat-sealed. A tear tape can be applied from its own reel so the consumer can open the wrap.

This LINEVO configuration wraps perfume cartons, essential oil boxes and fragrance gift sets. Configuration review covers servo-controlled film tension and folding, an integrated tear tape applicator, digital-dial settings to change box size without manual tooling, and a Siemens PLC and HMI with throughput monitoring and fault diagnostics. Our engineers define the required options and evaluate wrap appearance with your boxes and film.

Perfume boxes and gift sets: what to send for review

Overwrapping works on a rectangular box that keeps its shape while the film is folded and sealed around it. Send every box format you plan to run, taken from production rather than hand-made, because box size variation shows up directly in the wrap.

• Single perfume cartons: the length, width and height of the smallest and largest box, and the board and print finish.
• Gift sets: a gift box holding a bottle and other items is wrapped like a single box. Several boxes bundled under one wrap are a different format; say which one you need.
• Decorated boxes: hot-foil, embossing, soft-touch coating, windows or a lid that can lift may change how the film lies and seals. These need a sample test before a result can be stated.
• Essential oil and other fragrance boxes: included in the application review. Small boxes still need their dimensions checked against the configuration.

Wrap appearance: what to agree before the sample test

For perfume packaging the wrap is part of the presentation, so agree the appearance criteria before the sample test, not after. Use a wrapped reference box if you have one.

Most finish problems trace back to box dimensions that vary, film tension or seal temperature. Box dimensional variation affects the fit of the wrap. We review servo-controlled film tension and heat-seal settings against your boxes and film to manage humidity and dust protection. Whether the wrap meets your criteria is decided on your boxes and film.

• Faces: film tight and flat, without wrinkles or trapped air on the front and back.
• Corners and end folds: folds symmetric and square, with no loose flap.
• Seals: flat, with no haze, burn marks or visible shrinkage on the printed face.
• Box surface: no scuffs or marks on print, foil or coating after wrapping.
• Tear tape: straight, at the agreed position, and opening cleanly.

Tear tape options for perfume boxes

A tear tape applicator is on the configuration list for this machine. The tear tape is a narrow strip laid under the film so the consumer can pull the wrap open. Specify it if your perfume boxes need an easy-open feature; overwrapping works without it.

Send the tape specification and the position you want, so the review covers the tape reel, its path and its placement on the box:

• Tape width, color and any print, and the reel size you buy
• The face of the box the tape runs across, and its distance from the edge
• Whether one tape is enough; other tape layouts are reviewed per project
• Where the consumer should find the pull tab

Changing between perfume box sizes

Fragrance lines often run several box sizes. Format review covers digital-dial settings for changing box dimensions without manual tooling. Before ordering, ask for the changeover on your own formats: which format parts change, which settings are made by dial, whether the film reel width changes, how the tear tape position is reset, and how long the change takes. The changeover time is confirmed in the quotation.

List every box size you need, including planned ones. If two sizes differ a lot, ask whether one machine covers both or whether the range should be split.

Perfume box overwrapping questions

Which film does it use? The overwrapping family lists BOPP and cellophane film. The film needs a heat-sealable coating that suits the seal temperature and does not mark the box. Send the film you plan to use and its thickness, so the sample test runs with it.

Can it connect to a cartoner or case packer? Line integration covers connections to upstream cartoning and downstream boxing equipment. Define the infeed height, box orientation and spacing, and who supplies the conveyors between the machines.

What output can I expect? We define output for your application. It depends on the box size, the film, the tear tape and how the boxes are fed, so ask for a rate tied to your formats.

What should I send for a quotation? Several production boxes of each size, a finished gift set if you wrap one, the film and tear tape specification, a wrapped reference sample if you have one, the target output, the upstream and downstream equipment, and site utilities.

Applications and materials

This configuration serves the following products and applications. Our engineers review product behavior and pack requirements with representative samples.

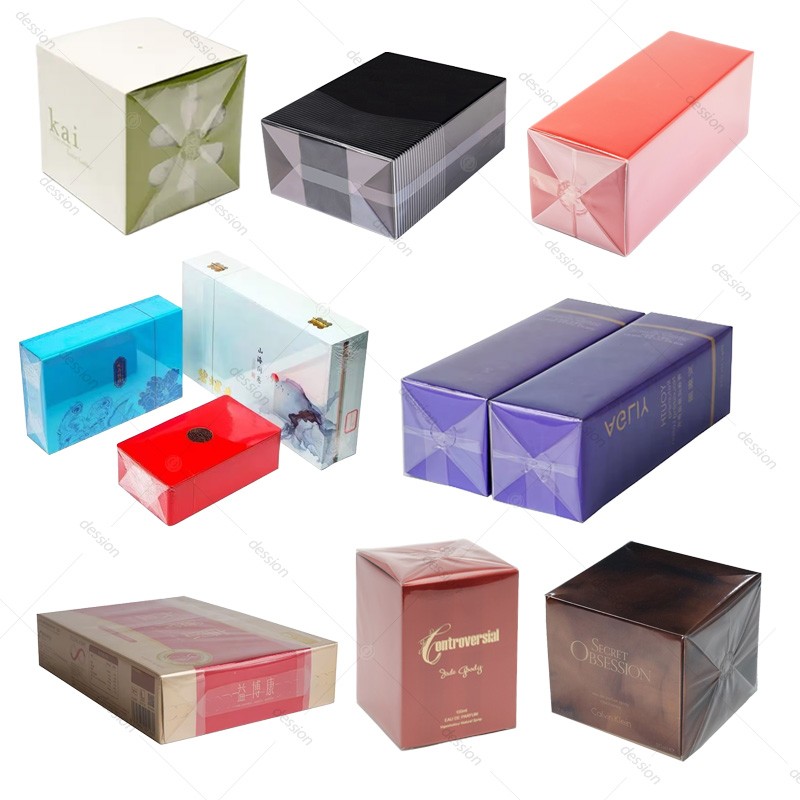

• Perfume cartons wrapped in clear film for retail presentation.
• Essential oil boxes and fragrance gift sets, subject to box and film review.

Configuration and scope

We develop the equipment configuration, tooling and integration around your product, pack format and production requirements.

Configuration items for engineering review

• Tear Tape (Easy-Open) Applicator
• Industrial PLC & Smart Diagnostic Suite
• Siemens PLC and HMI interface

Machine features

Review these features with our engineering team to select the configuration for your product and packaging requirements.

• Modular "Quick-Change" Format Adjustment: No manual tooling required.
• Industrial PLC & Smart Diagnostic Suite: Fully integrated with a Siemens PLC and HMI interface, offering real-time throughput monitoring and comprehensive fault diagnostics for reliability.

Application questions to review

Our application review addresses the handling and packaging challenges below. Product trials help establish the settings and equipment choices for your material.

• Moisture and Environment Sensitivity: The wrapping and heat-sealing process closes the film around fragrance and skincare cartons. Film barrier properties and sealing settings are selected for the product and storage requirements.

Specifications and conditions

Our engineers develop an application-specific specification covering output, pack-size range, machine dimensions and utilities for your product and packaging format.

Request a specification review with your product details, pack format and target output.

How this fits the Cellophane Overwrapping Machines process

Overwrapping machines wrap boxes in transparent film with folded, heat-sealed ends, often with an easy-open tear tape. Box dimensions, film and tear-tape options define the scope of a configuration.

This machine is part of our Cellophane Overwrapping Machines portfolio. Explore the configurations for other products and pack formats, or discuss a tailored arrangement with our engineering team.

The linked guides explain how this type of machine works and how to choose one.

Related configurations

Configurations for similar products, including the next machine in the line.

Questions buyers ask about this configuration

Short answers to what buyers ask most often when they review a configuration.

How do I get output and dimensions for my product?

Our engineers develop an application-specific specification covering output, pack-size range, machine dimensions and utilities for your product and packaging format.

Can I test my product before ordering?

A representative sample test helps resolve material-specific questions before quotation. Please do not ship physical samples until the team has confirmed the quantity needed and where to send them.

Is this the configuration I would receive?

We configure the machine around your product, pack formats and production requirements. Our engineering review defines the model, equipment, options and operating conditions for your project.

What defines the scope of a Cellophane Overwrapping Machines configuration?

Overwrapping machines wrap boxes in transparent film with folded, heat-sealed ends, often with an easy-open tear tape. Box dimensions, film and tear-tape options define the scope of a configuration.

Engineering support

LINEVO engineers develop machine configurations and packaging-line interfaces around your production task. We bring application review, equipment selection and technical support into one project.

Product and packaging-material trials focus on the functions that matter for your application. Our team helps with configuration, operation, parameter adjustment and maintenance planning.

Review your application

Send the following to discuss this configuration. A representative sample test helps resolve material-specific questions before quotation.

• Product name and form (powder, granule, liquid, paste or solid pieces), with a sample or photos
• Target fill weight or volume, or the item count per pack
• Pack type and dimensions, and the packaging material you use
• Target output per minute or per shift
• Site utilities: voltage, phase and frequency, and compressed air
• Any upstream or downstream equipment the machine must connect to
